Description

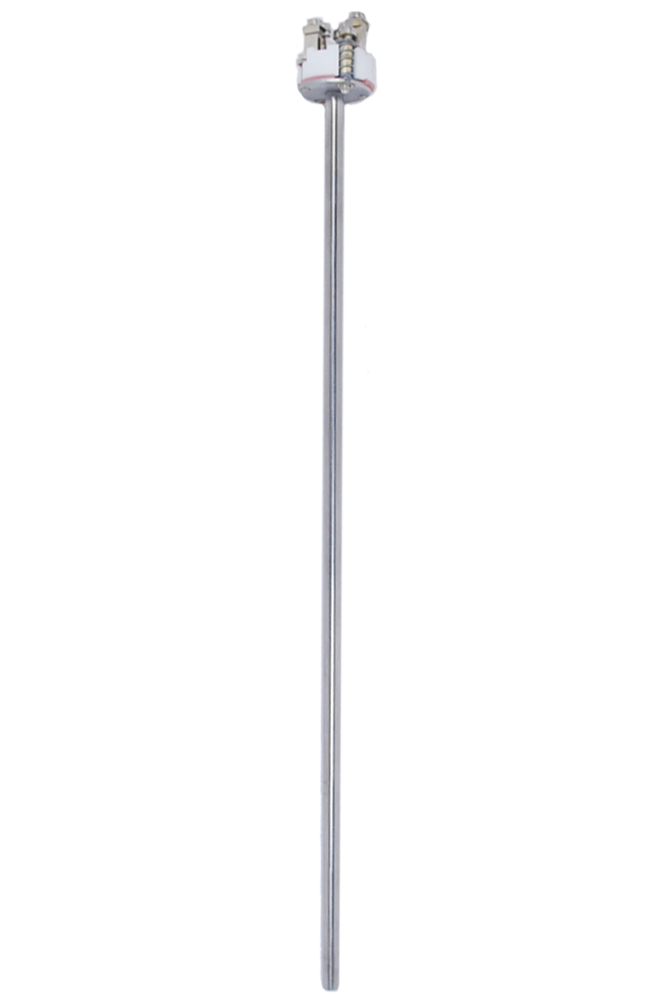

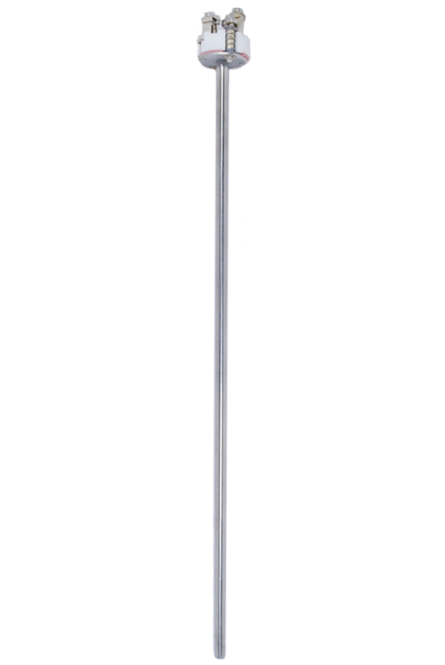

Mineral insulated metal sheathed insert is used as a replaceable element of temperature sensors. Insert design enables its installation in the connection head and pressing insert tip to the bottom of the sensor thermowell.

Files

pdf icon Catalog card pdf icon Manual / DTR

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
product image
General Cooperating devices Additional accessories Contact form

Temperatura range

  • -200÷550ºC      RTD
  • -40÷600ºC        J
  • -40÷900ºC        K



Specification

  • sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
  • sheath material: acid-resistant steel 1.4541,  1.4571

Temperature sensors can cooperate with the devices registering parameters of the controlled process.

Controllers / Thermostats

Indicators

Recorders

Some applications require the use of additional accessories suitable for their individual requirements.

transmitters
