Description

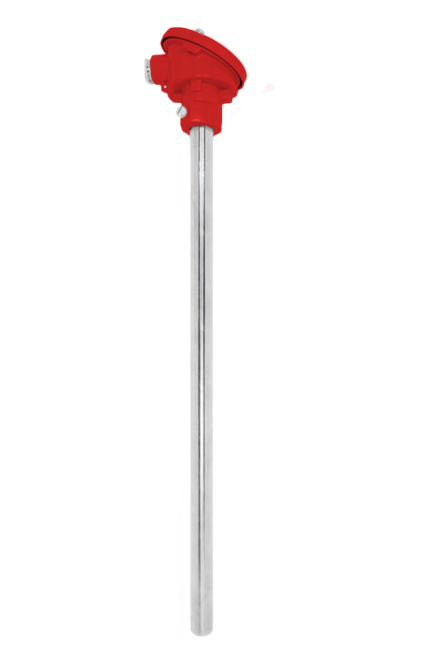

This sensor is suitable for temperature measurements of media with slow temperature changes. Sensor sheath made of heat-resistant or/and creep-resistant steel enables temperature measurement of e.g. burned gases and exhaust gases in furnaces.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Connection heads
Cooperating devices
Additional accessories
Contact form
Temperatura range
- -40÷700ºC J
- -40÷1200ºC K
Specification
- sensing element: J, K, N, T thermocouple
- process connection with G1/2 or M20x1,5 thread
- connection head type AA IP53, - 40÷100ºC
- sheath material: acid-resistant steel 1.4541
- temperature transmitter can be mounted in a connection head
- measuring insert: pipe or mineral insulated version
Mounting
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
Some applications require the use of additional accessories suitable for their individual requirements.
