Description

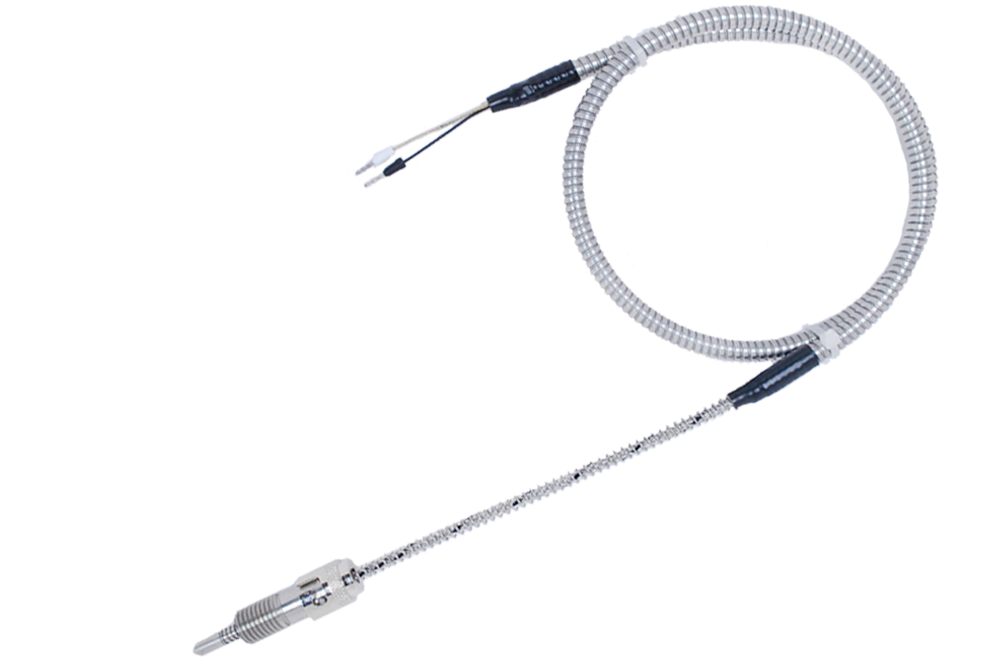

Sensor suitable for temperature measurement in district heating substations. Applicable also for temperature measurement of liquid and gaseous media in high pressure conditions. Sensor consists of resistor placed in the thin-walled acid-resistant sheath connected to flexible lead protected with corrugated steel pipe.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
Temperature range
- -50÷400ºC Pt100
- -40÷400ºC K, J
Specification
- flexible protection hose, stainless,
- round (K), fl at (P), tapered (S) tips
- bayonet fi tting with connector – nickel-plated brass
- material: stainless steel 1.4541
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
Normally, sensor is made with fiberglass insulated lead wire and metallic braid.
There is a possibility to use lead wire of different type.
Some applications require the use of additional accessories suitable for their individual requirements.
