Description

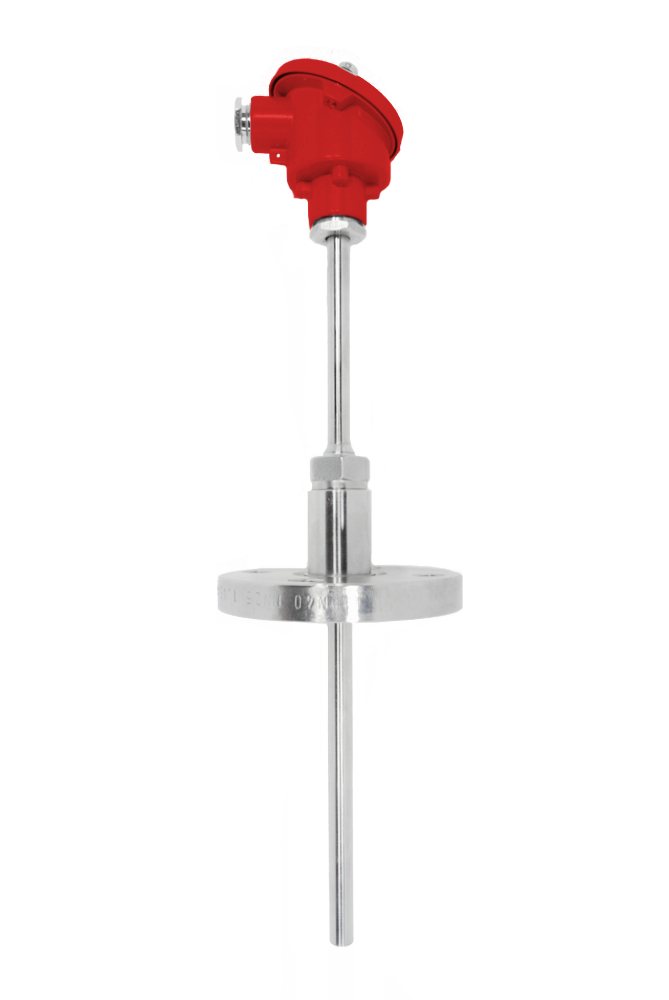

Sensor suitable for temperature measurements, primarily in industrial pressure tanks, in all these places where mounting of a threaded process connection would be problematic. The temperature sensor design (replaceable measuring insert) is suitable for various industrial applications. Replacement of the measuring insert does not cause the technological installation damage. Spring-loaded insert guarantees an excellent connection with the bottom of the sensor thermowell.
Files
Catalogue card
Temperatura range
- -200÷150ºC RTD
- -40÷150ºC TC
Specification
- sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
- process connection with G1/2 or M20x1,5 thread
- connection head type BA IP55, - 40÷100ºC
- sheath material: acid-resistant steel 1.4541
- temperature transmitter can be mounted in a connection head
- measuring insert: pipe or mineral insulated version
Mounting
Connection head type BA in standard.
Possibility to mount the connection head of a different type.
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
