Description

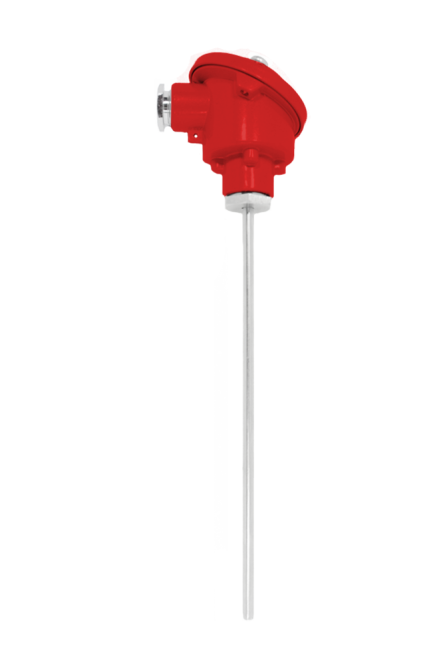

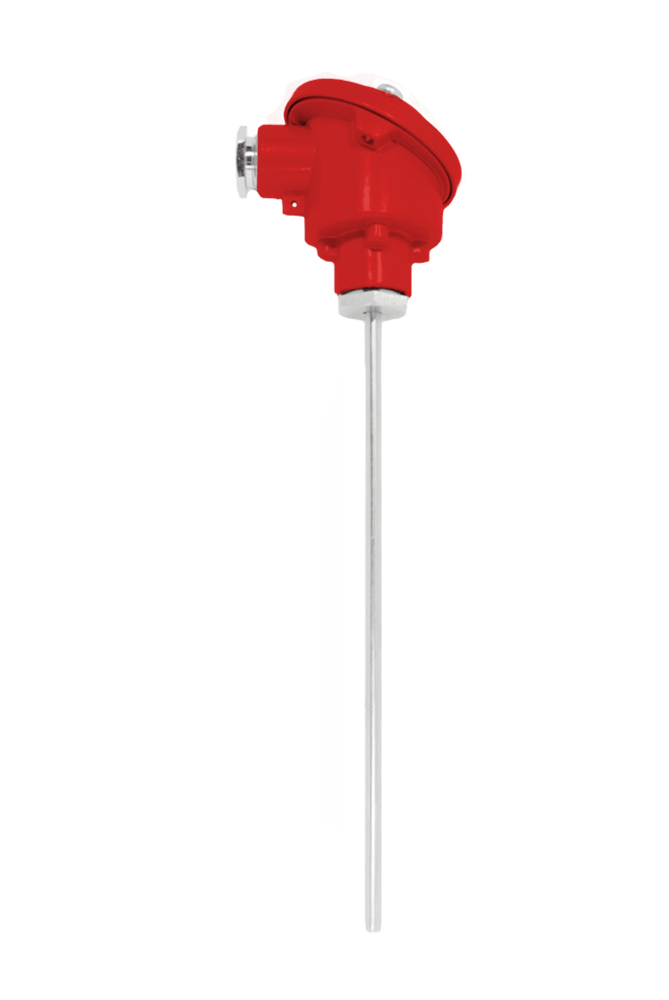

This sensor is used for temperature measurement of liquid and gaseous media. The temperature sensor design (replaceable measuring insert) is suitable for various industrial applications. Replacement of the measuring insert does not cause the technological installation damage. Spring-loaded insert ensures an excellent connection with the the bottom of the sensor thermowell.
Files
Catalogue card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
Temperatura range
- -200÷550ºC RTD
- -40÷700ºC J
- -40÷900ºC K
Specification
- sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
- process connection with G1/2 or M20x1,5 thread
- connection head type BA IP55, - 40÷100ºC
- sheath material: acid-resistant steel 1.4541
- temperature transmitter can be mounted in a connection head
- measuring insert: pipe or mineral insulated version
Mounting
Connection head type BA in standard.
Possibility to mount the connection head of a different type.
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
Some applications require the use of additional accessories suitable for their individual requirements.
