Description

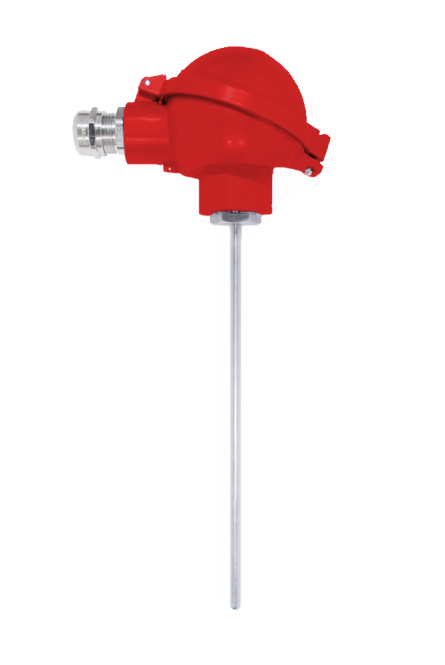

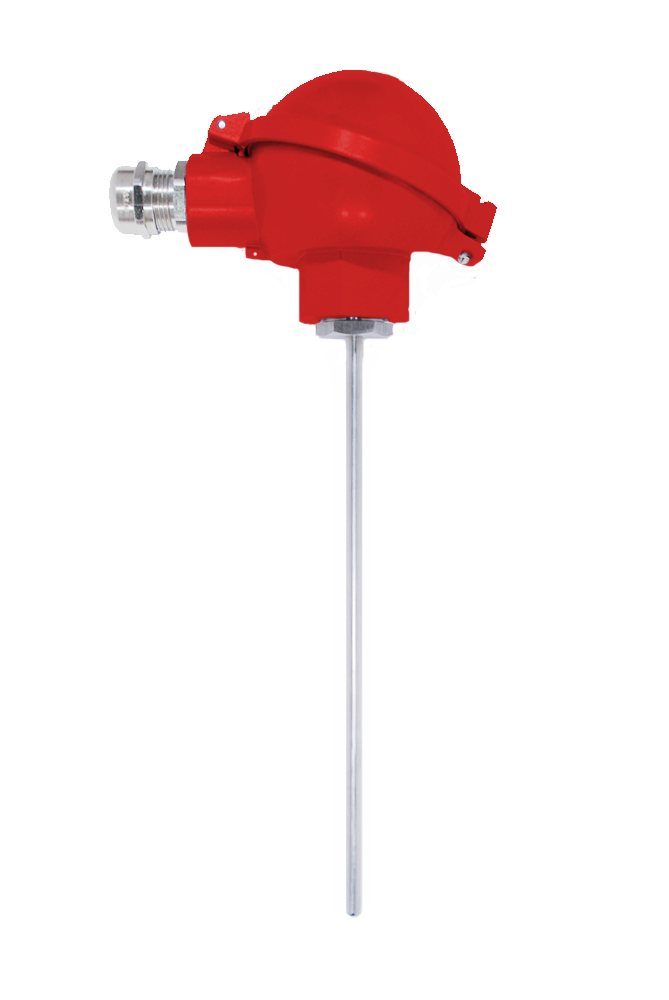

Temperature sensor suitable for measurement of liquid and gaseous media. Temperature sensor has ATEX approval for application in hazardous area: I M1 Ex ia (with connection head N1) II 2G Ex ia IIC T6 II 2D Ex ia IIIC T85°C cable gland II 2GD Ex eb IIc, Ex ta IIIC (for the cable 5÷10mm)
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
Temperatura range
- -200÷600ºC RTD
- -40÷700ºC J
- -40÷1200ºC K
Specification
- sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
- process connection with G1/2 or M20x1,5 thread
-
connection head type aluminium XE-DANA (S1-standard), XE-DAND (S2),
XE-DANAW (W1), XE-DANDW (W2) or stainless XE-BE (N1), IP65 - sheath material: acid-resistant steel 1.4541
- cable gland ATEX II GD IP65 (for cable 5÷10 mm)
- Exi acc. to ATEX
Mounting
Connection heads
Connection head type XE-DANA in standard.
Possibility to mount the connection head of a different type.
| XE-DANA | XE-DAND | XE-DANAW |
|
|
|
|
| XE-DAND | XE-BE |
|
|
|
For details see: "connection heads"
Cooperating devices
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
| Temperature Indicators | Controllers | Recorders |
|
|
|
|
For details see: “indicators”, “controllers”, “data loggers”
Additional accessories
Some applications require the use of additional accessories suitable for their individual requirements.
| Transmitters | Welding adapters | Displays |
|
|
|
|
| Plugs and Sockets | Compensation cables | Protection Tubes |
|
|
|
|
For details see: “transmitters”, "welding adapters", "displays", "plug and sockets", "compensation cables", "protection tubes"
