Description

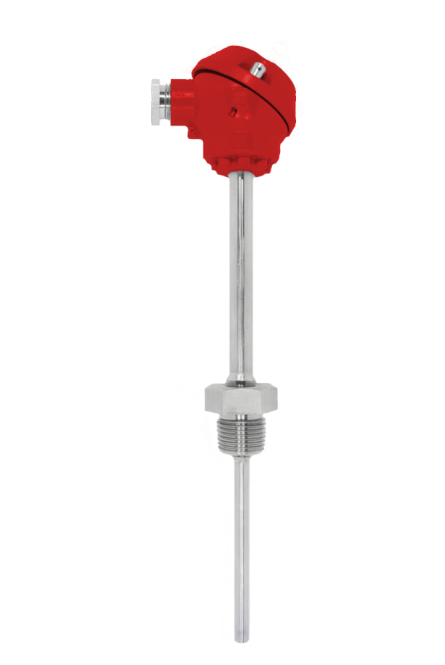

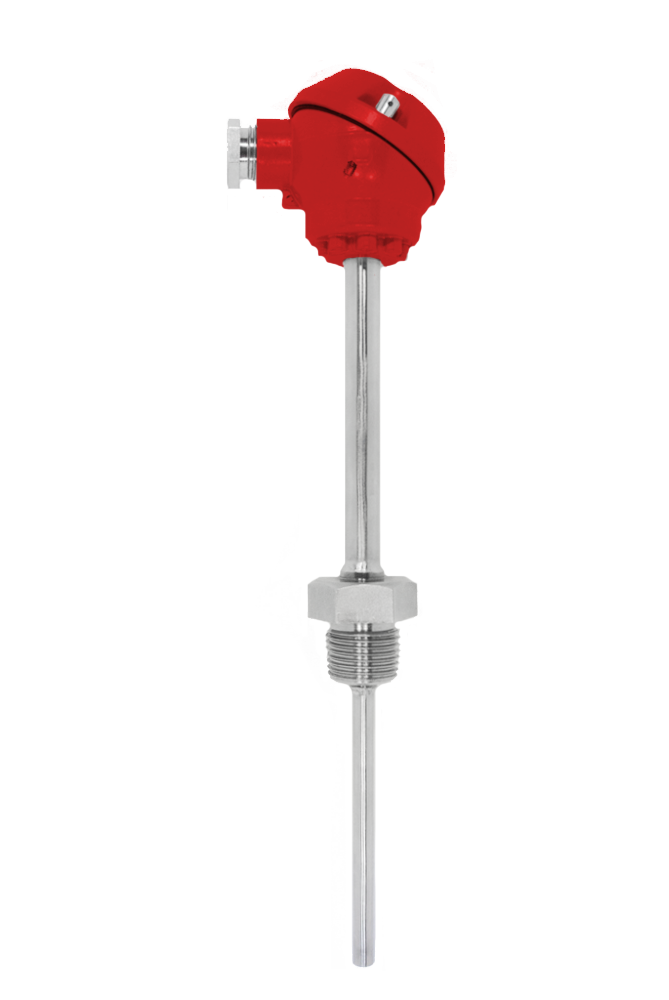

Temperature sensor applied in industrial pipelines, pressure and other tanks for temperature measurement of liquids and gases. Sensing element is placed directly in the thermowell.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Connection heads
Cooperating devices
Additional accessories
Contact form
Temperatura range
-
-200÷550ºC RTD
- -40÷600ºC TC
Specification
- sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
- process connection with G1/2 or M20x1,5 thread
- connection head type MA IP54 - 40÷100ºC
- sheath material: acid-resistant steel 1.4541
- temperature transmitter can be mounted in a connection head
Mounting
Connection head type MA in standard.
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
Some applications require the use of additional accessories suitable for their individual requirements.
