Description

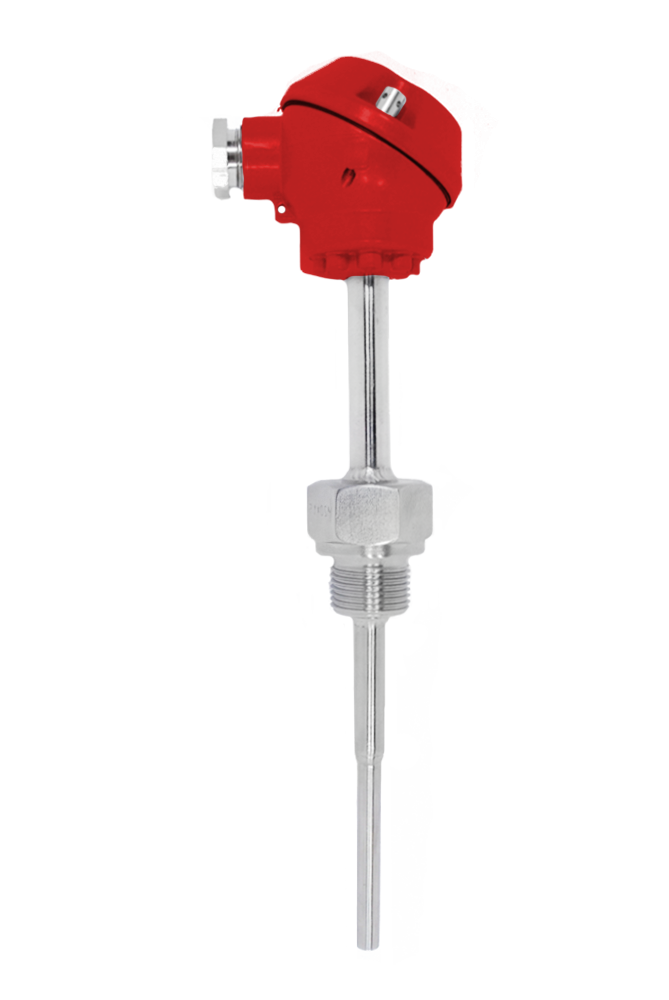

Temperature sensor suitable for measurement of liquid and gaseous media, mainly in systems for energy consumption billing.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Connection heads
Compatible devices
Additional accessories
Contact form
Temperatura range
- -50÷200ºC RTD
- 0÷150ºC
- 3÷150ºC
Specification
- sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
- process connection with G1/2 or M20x1,5 thread
- connection head type MA IP54, - 40÷100ºC
- sheath material: acid-resistant steel 1.4541
- temperature transmitter can be mounted in a connection head
Mounting
