Description

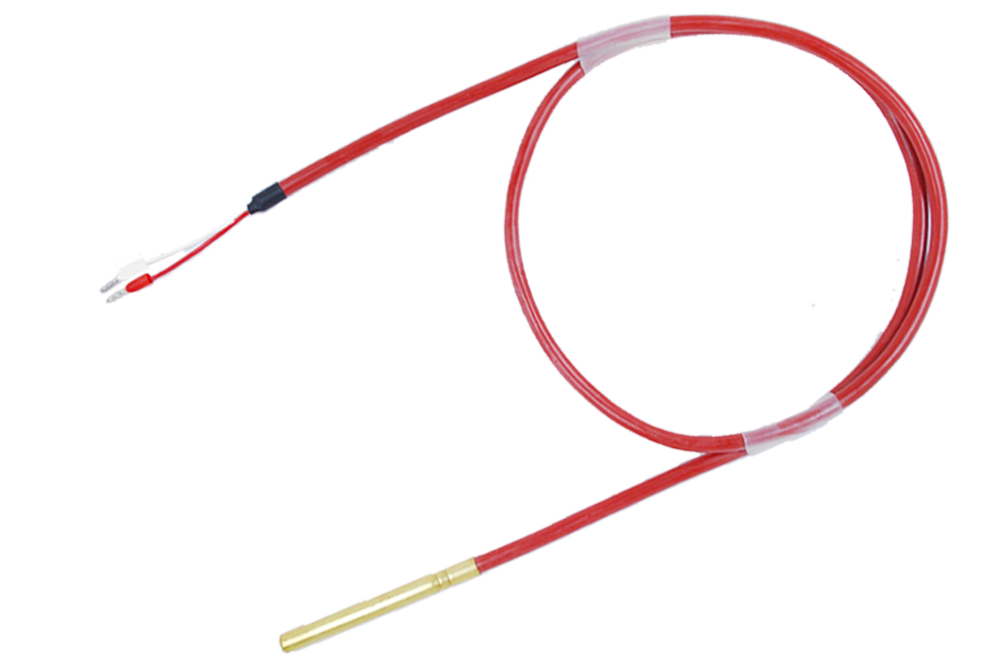

Temperature sensor suitable for measurement of liquid and gaseous media, mainly in systems for energy consumption billing.

Files

pdf icon Catalog card pdf icon Manual / DTR

Contact with a consultant

Telephone: +48 (18) 330 10 06

Fax: +48 (18) 330 10 04

E-mail: [email protected]

Do you have a question?
product image
General Compatible devices Cables Additional accessories Contact form

Temperatura range

  • -50÷180ºC Pt100, Pt500 kl. B
  •  0÷150ºC        temperature range for sensor pair
  •  3÷150ºC        range of temperature difference



Specification

  • sensor pair Pt100 and Pt500 with Central Offi ce of Measures (GUM) approval type PTL05304
  • stranded Cu wire 2x0,25 mm2 with double silicone insulation
  • outer thermowell for sensor mounting in pipelines
  • sheath material:brass
