Description

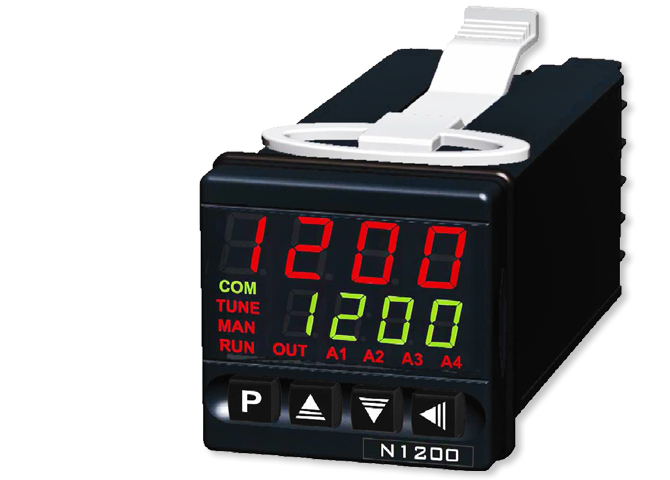

Very fast PID controller suitable for complicated industrial processes. Optionally, RS-485 communication, digital input/output and heater failure detection are possible. It has a universal input suitable for most popular thermocouple and Pt100 sensors and analogue inputs, including 4÷20mA, 0÷10V, 0÷5V. Low or standard 230V power supply can be selected. Up to 3 outputs programmable as alarm or control, digital input/output are available, 5th output is universal, including SSR 14V (for control of three-phase semiconductor relays or 4÷20mA (control or retransmission)), or digital input/output.
Files
Catalog card
General
Compatible devices
Additional accessories
Contact form
Characteristic
- programmable temperature controller for demanding applications
- dual 4-digit LED display
- PID control; ON/OFF control
- auto-tuning
- processing 55 bits of the input signal
- front panel: IP65
Specifications
- universal input: TC/RTD/4-20mA
- output: 2xrelay
- third-purpose programmable output 4-20mA, SSR 14V
- power supply: 230V AC, 24V DC / AC ±10%
- dimensions: 48 × 48 × 110; cut-out 45,5 × 45,5 mm
-
additional features: interface RS-485
digital input/output
heater break detection
