Description

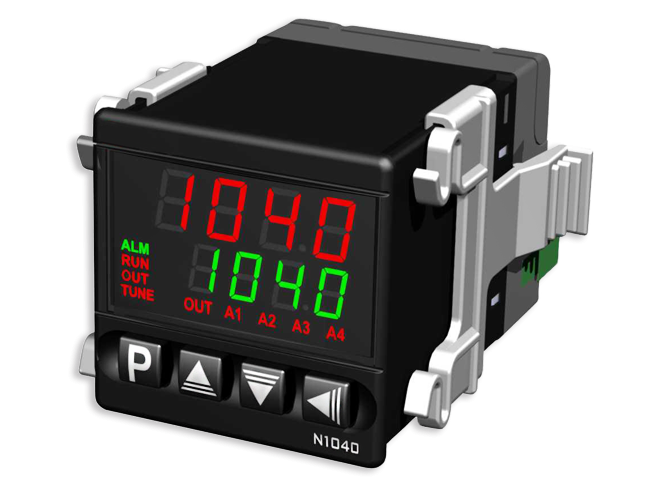

The controller has two displays of the process and the preset value. Up to three relays and SSR 5 V single-phase solid state relay control. Non-removable casing, small size, anti-reflective cover, clear display. Front panel IP 65 Lockable access dependent on the code scan.
Files
Catalogue card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Compatible devices
Additional accessories
Contact form
Characteristic
- programmable temperature controller
- 4 digit dual LED display
- PID control; ON/OFF control
- auto-tuning
- sensor offset
- front panel: IP65
Technical data
- universal input: TC, RTD
- output: 3xrelay, SSR
- power supply: 100÷240V AC, 24V DC / AC ±10%
- dimensions: 48 × 48 × 80; hole; 45,5 × 45,5 mm
