Description

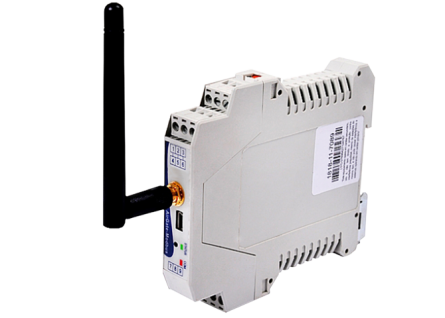

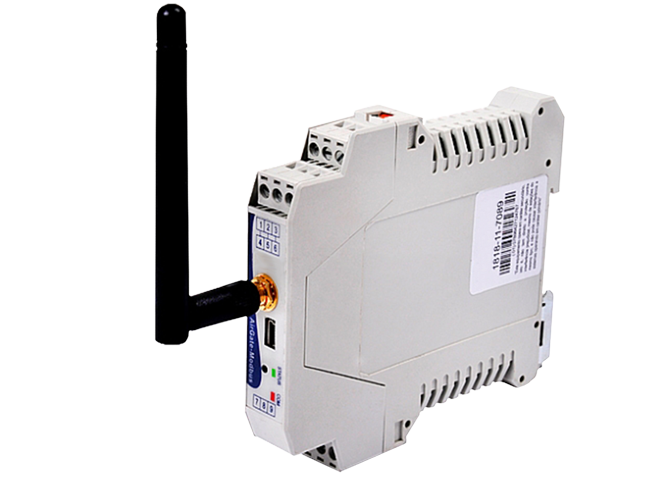

AirGate-Modbus is a wireless multifunctional gateway that allows the transparent and easy insertion of wireless branches into existing wired RS485 networks. The AirGate-Modbus has four operation modes, Modbus Master, multiplexer, USB RS485 converter and simple wireless RS485 extension. A proprietary protocol based on IEEE 802.15.4 facilitates operation in star mode, allowing the connection of several wireless segments to an existing Modbus RS-485 network.
Files
Catalogue card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: [email protected]
General
Cooperating devices
Contact form
Characteris
- up to 16 operating channels
- range up to 1000 m
- RF data rate up to 250 Kbps
- operating band ISM 2.4 GHz (IEEE 802.15.4)
- AES-CBC-128 data cryptography
- star network topology operation
Specifications
- antenna gain 2 dBi
- 4 Work mode: RS485-Master, RS485-Slave, USB-Master, Multi-Master
- power supply: 10÷35V DC
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
